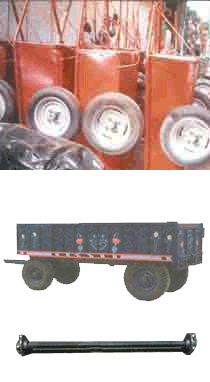

Hand Cart

Specifications: All Axles fitted with  4 Taper Roller bearings for added load and better performance. Axle and forged hub, machined on CNC machines, maintaining best possible tolerances. Hub is hot forged to withstand high load.

All Hub Bolts are high tensile fasteners of 10.9 Grade / 8.8 Grade.

No pollution - no fossil fuels, all conventional energy utilization only.

We would like to gain you as a WINDSOR customer and would be pleased to show you what we can do and prove that we can offer the product with the most advanced technology at absolutely competitive conditions.

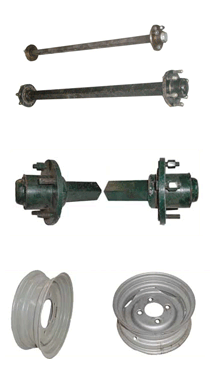

Cart Axle

Cart



Solid Axel(Square-AF) Bearing 1 Bearing 2 Hub Bolt No. of Hub Bolts L Bet. Flanges App  Wt. kg Rim   seat dia Hub  bolt   PCD

             Hub
35 x 35 30206 30206 M 16x1.5 4 1000 16 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1100 17 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1250 18.5 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1400 20.5 84 130 Forged
40 x 40 30206 30206 M 16x1.5 4 1100 21 84 130 Forged
40 x 40 30206 30206 M 16x1.5 4 1250 23 84 130 Forged
40 x 40 30206 30206 M 18x1.5 4 1400 24.5 84 130 Forged
50 x 50 30208 30210 M 18x1.5 6 1500 50 160 205 SG Iron
60 x 60 30208 30210 M 18x1.5 6 1630 79 160 205 SG Iron
60 x 60 30208 30210 M 18x1.5 6 1500 75 160 205 SG Iron
60 x 60 30207 30210 M 18x1.5 6 1500 75 160 205 SG Iron
65 x 65 30209 30211 M 18x1.5 6 1630 86 160 205 SG Iron
65 x 65 30209 30211 M 18x1.5 6 1500 81 160 205 SG Iron
70 x 70 30209 30211 M 18x1.5 6 1630 98 160 205 SG Iron
70 x 70 30209 30211 M 18x1.5 6 1500 88 160 205 SG Iron
70 x 70 30208 30211 M 18x1.5 6 1600 92 160 205 SG Iron
Rims Available

5.50 x 16
10.50 x 16
11.00 x 16
Tyre Tube Available
7.50 x 16
11.00 x 16



Note:- All Hubs are Conical.

Any Foreign Name, Brands, Original Part Numbers are for reference only. We supply goods in our Brands & Packings.
